Many spinning wheel owners choose to purchase drive band material by the foot rather than buying a pre-made drive band. This approach allows spinners to create a drive band that fits their specific wheel and adjust it whenever necessary.
Making a drive band from drive band material is usually simple and gives the spinner control over the length, tension, and replacement schedule of the band.
Note: While this guide focuses on making DIY drive bands from spinning wheel drive band material, I also carry pre-made drive bands for Ashford drive bands, Kromski drive bands, Louet drive bands, Lendrum drive bands, and Majacraft drive bands if you prefer a ready-to-install option.
What Is a DIY Drive Band?
A DIY drive band is a loop of drive band material that the spinner measures, cuts, and ties to fit their spinning wheel. Instead of installing a factory-made band, the spinner creates one using drive band material. Many experienced spinners prefer DIY bands because they allow quick replacement and precise fitting.
| Drive Band Type | Description |
|---|---|
| Pre-made drive band | Factory sized loop designed for specific wheels |
| DIY drive band | Drive band material cut and tied by the spinner |
| Adjustable drive band | Drive band that can be shortened or replaced easily |
Why Spinners Buy Drive Band Material by the Foot
Buying drive band material by the foot provides flexibility that pre-made drive bands cannot always offer. The spinner can cut the exact length needed for their wheel, make replacement bands at any time without waiting for a delivery, test different materials easily, and replace a broken band in minutes. This flexibility makes drive band material a practical option for many spinning wheel owners — especially those who travel with their wheel or work with older models that have uncommon drive path dimensions.
Choosing the Right Drive Band Diameter
Drive band material comes in different diameters to match different wheel designs and drive systems. The diameter affects how well the band grips the wheel and how much friction it creates.
Common polyurethane drive band diameters for spinning wheels include 3/32 inch polyurethane drive band material for lighter wheels and 1/8 inch polyurethane drive band material for most standard wheels. Larger diameters like 1/4 inch polyurethane drive band material and 5/16 inch polyurethane drive band material are typically used for drum carders rather than spinning wheels. Check your wheel’s manual or measure your existing drive band to determine which diameter works best.

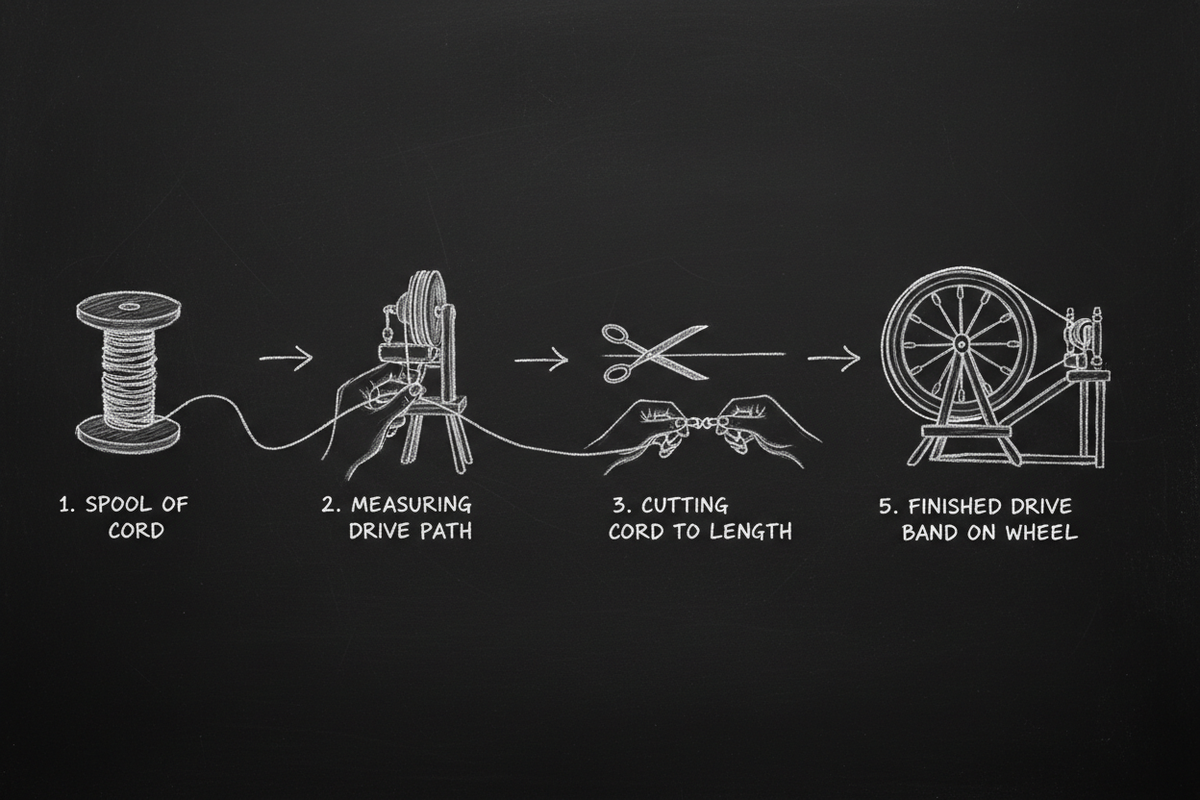

How to Measure a Drive Band
Measuring a drive band is usually straightforward. The goal is to determine the length of drive band material needed to wrap around the drive wheel and flyer whorl.
- Wrap a piece of string around the drive path
- Mark where the ends meet
- Measure the string length
- If using cotton or hemp, add a small amount of extra length for tying a knot. If using polyurethane, no knot is needed — the ends are fused together, so cut to the measured length only.
This measurement provides a good starting point when cutting drive band material.
How to Join a Drive Band
Cotton and hemp drive bands are tied using a small knot that keeps the loop secure while allowing the band to rotate smoothly. Polyurethane drive bands do not require a knot — the ends are joined by fusing.
| Knot Type | Purpose |
|---|---|
| Square knot | Simple and easy to tie |
| Weaver’s knot | Compact and smooth |
| Surgeon’s knot | Extra security for slippery material |
When a knot is used, it should be small enough to pass smoothly around the drive wheel and flyer assembly.
Install, Test, and Keep Spare Material on Hand
Place the completed drive band loop onto your spinning wheel, ensuring it sits properly in the drive path and — if knotted — the knot passes smoothly. Test tension and adjust if needed. Store extra drive band material so you can create a replacement band quickly whenever needed, especially when traveling.
Advantages of DIY Drive Bands
Making your own drive band has several practical advantages. A custom-cut band fits your specific wheel exactly, which is especially useful for older wheels or unusual drive path configurations where pre-made bands may not be available. Replacement bands can be made in minutes from material already on hand, which is a significant advantage when traveling or when a band breaks mid-session. The ability to experiment with different materials and diameters makes it easy to find what works best for your wheel. And over time, buying by the foot is typically less expensive than purchasing individual pre-made bands.
Possible Disadvantages
| Consideration | Explanation |
|---|---|
| Knot placement | The knot must pass smoothly around the wheel (cotton and hemp only) |
| Measurement accuracy | Incorrect length may affect tension |
| Material choice | Some materials may slip more than others |
With practice, most spinners find DIY drive bands easy to manage.
When DIY Drive Bands Are Most Useful
Drive band material is especially helpful when replacement bands are needed quickly. It’s particularly valuable when traveling with a spinning wheel — a small length of cord takes up almost no space and can save a spinning session if a band breaks away from home. Older wheels with uncommon drive path dimensions benefit from custom-cut bands since pre-made options may not be available in the right size. And for spinners who like to experiment with different materials or tension levels, having cord on hand makes it easy to make and replace bands at any time. Having drive band material available allows a spinner to create a replacement band in minutes.
Key Takeaways
- Buying drive band material by the foot lets spinners cut a band to the exact length their wheel needs, rather than relying on a pre-made band that may not fit perfectly
- Polyurethane is the most practical material for DIY bands — durable, low-stretch, and fused into a seamless loop with no knot required
- Cotton and hemp bands are tied with a small knot (square, weaver’s, or surgeon’s) that must be compact enough to pass smoothly around the drive wheel
- For most standard spinning wheels, 1/8 inch polyurethane is the right diameter; lighter wheels may use 3/32 inch; 1/4 inch and 5/16 inch are for drum carders
- Measure the drive path with string first, then cut to that length (plus a little extra for knotted materials)
- Keeping spare drive band material on hand means a broken band can be replaced in minutes — especially valuable when traveling
- DIY bands are particularly useful for older or vintage wheels with uncommon drive path dimensions where pre-made bands may not be available
- Over time, buying by the foot is typically less expensive than purchasing individual pre-made bands, especially for spinners who replace bands regularly or own multiple wheels
Frequently Asked Questions
Why do spinners buy drive band material by the foot?
Buying drive band material by the foot gives spinners the flexibility to create a band that fits their specific wheel exactly, rather than relying on a pre-made band that may not be the right length. The spinner can cut the exact length needed, make replacement bands at any time without waiting for a delivery, test different materials to find what works best for their wheel, and replace a broken band in minutes rather than days. For spinners who travel with their wheel or work with older models that have uncommon drive path dimensions, having a supply of drive band material on hand is especially practical.
Is it difficult to make a drive band?
No — making a drive band is one of the simpler maintenance tasks for a spinning wheel. For polyurethane material, you measure the drive path, cut the cord to length, and fuse the ends together to form a seamless loop. For cotton or hemp, you cut the cord slightly longer than the drive path measurement and tie a small, secure knot to join the ends. The whole process typically takes just a few minutes once you’ve done it once. Most spinners find it straightforward after their first attempt.
Can drive band material be reused?
It depends on the material and condition. Polyurethane drive band material is durable and can often be reused if it hasn’t stretched significantly or developed flat spots from extended use. Cotton and hemp bands can sometimes be retied at a different point if the original knot area has worn, though they tend to stretch over time and eventually need replacing. In general, it’s worth keeping a supply of fresh drive band material on hand so you can make a new band quickly rather than trying to extend the life of a worn one.
Do DIY drive bands work on most spinning wheels?
Yes — most spinning wheels can use drive bands made from standard drive band material, as long as you choose the right diameter for your wheel’s drive system. The key is matching the cord diameter to the groove in your drive wheel and flyer whorl. Wheels with unusual groove sizes or proprietary drive systems may require a specific diameter or material, so it’s worth checking your wheel’s manual or contacting the manufacturer if you’re unsure. For the majority of common wheel models, standard polyurethane drive band material in 3/32 or 1/8 inch diameter works well.
What diameter drive band material should I buy?
For most standard spinning wheels, 1/8 inch polyurethane drive band material is the most common choice. Lighter or smaller wheels may use 3/32 inch material, which sits in a narrower groove and produces slightly less friction. Larger diameters like 1/4 inch and 5/16 inch are typically used for drum carders rather than spinning wheels. The best way to determine the right diameter is to check your wheel’s manual, measure the groove width in your drive wheel, or measure the diameter of your existing drive band. When in doubt, 1/8 inch is a safe starting point for most standard floor and table wheels.
What knot should I use to tie a drive band?
For cotton or hemp drive bands, the most common choices are the square knot (simple and easy to tie), the weaver’s knot (compact and smooth, which helps it pass around the drive wheel without catching), and the surgeon’s knot (adds extra security for slippery or stiff material). Whichever knot you use, the goal is to keep it as small and flat as possible so it passes smoothly around the drive wheel and flyer assembly without creating a bump or vibration. Polyurethane drive bands do not require a knot at all — the ends are fused together to form a seamless loop.
What are the advantages of making my own drive band?
The main advantages are precision, flexibility, and cost. A DIY drive band can be cut to the exact length your wheel needs, which is especially useful for older wheels or unusual drive path configurations where pre-made bands may not fit well. Replacement bands can be made in minutes from material you already have on hand, which is a significant advantage when traveling or when a band breaks mid-session. Over time, buying drive band material by the foot is also typically less expensive than purchasing individual pre-made bands, particularly if you replace your drive band regularly or own multiple wheels.
When are DIY drive bands most useful?
DIY drive bands are most useful when you need a replacement quickly and don’t have time to wait for a pre-made band to arrive. This makes them especially valuable when traveling with a spinning wheel — a small length of drive band material takes up almost no space and can save a spinning session if a band breaks away from home. They’re also particularly helpful for older or vintage wheels that use uncommon drive path dimensions, since pre-made bands may not be available in the right size. Spinners who like to experiment with different materials or tension levels also benefit from being able to make and replace bands easily.
