You've got your loom set up, your warp is on, and you're ready to start weaving. You pick up your boat shuttle and wonder: how do you hold it? How does the bobbin work? Why does it sometimes catch on the warp threads?
If the spindle is one of the oldest tools for making yarn, the boat shuttle is one of the most iconic tools used to turn that yarn into cloth. For many weavers, the moment they first throw a shuttle across the loom is the moment weaving truly begins to feel rhythmic and alive.
A boat shuttle is designed to carry the weft yarn — the yarn that travels back and forth across the loom through the shed. Its smooth shape allows it to glide across the warp threads quickly and efficiently, making it one of the most commonly used shuttles in modern handweaving. Once you understand the mechanics, the shuttle becomes one of the most intuitive tools in weaving.
What a Boat Shuttle Actually Does
In weaving, fabric forms from two sets of threads:
Warp — the threads stretched lengthwise on the loom
Weft — the yarn woven across those warp threads
The boat shuttle carries the weft yarn across the loom. Each time you change the shed (the opening between warp threads), the shuttle travels through that opening. The weft yarn unwinds from a bobbin inside the shuttle, feeding smoothly into the cloth as the shuttle passes through. Because the bobbin rotates freely inside the shuttle, yarn can unwind with very little resistance, which allows the shuttle to move quickly and smoothly — a huge advantage compared to simpler weaving tools.

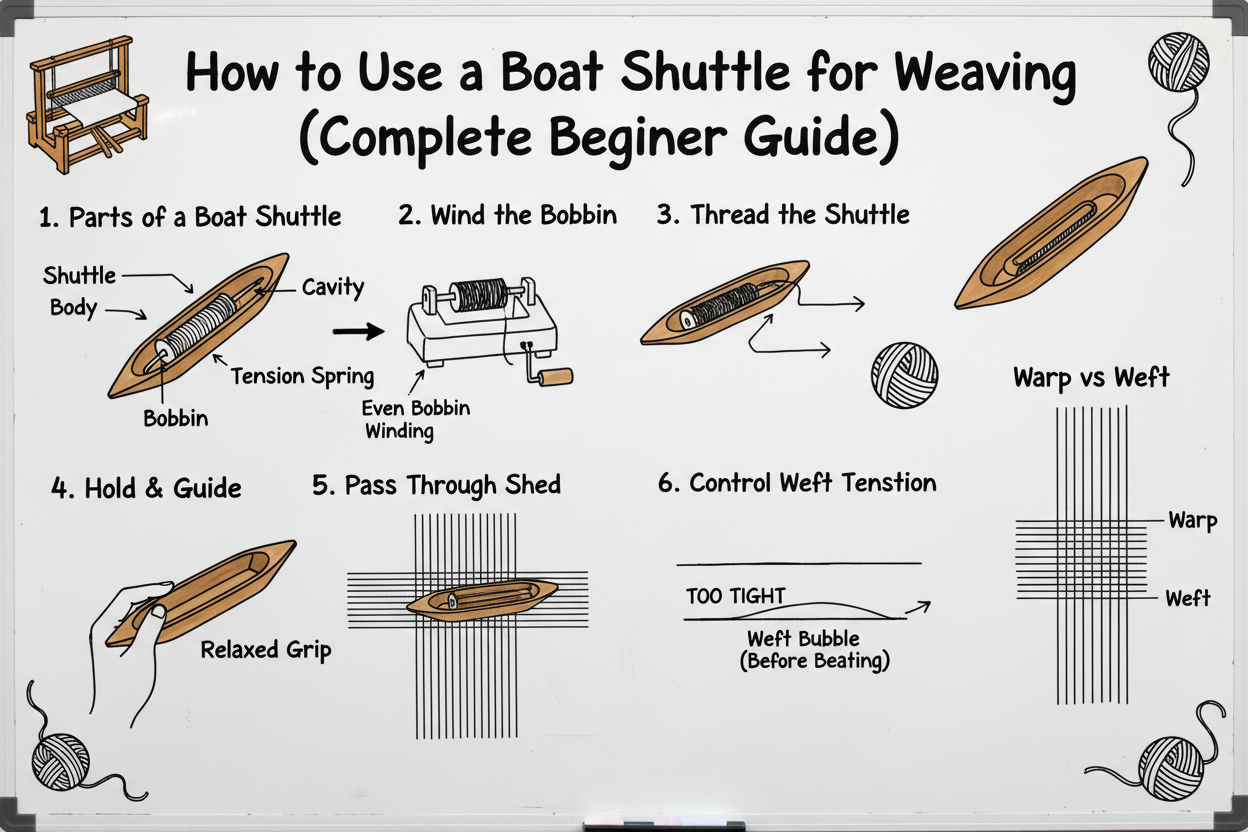

Understanding the Parts of a Boat Shuttle
Although designs vary slightly, most boat shuttles include the same basic components.
The shuttle body
This is the wooden shell that forms the boat shape. Its smooth curved bottom allows it to glide across warp threads without snagging.
The bobbin cavity
Inside the shuttle is a space where the bobbin sits.
The bobbin
A small spool that holds the weft yarn.
The tensioning system
Many boat shuttles include a small metal eyelet or tension spring that controls how quickly yarn feeds off the bobbin.
These simple parts work together to allow yarn to unwind smoothly while the shuttle travels across the loom.
Step One: Winding the Bobbin
Before the shuttle can be used, the bobbin must be wound with yarn. Bobbins can be wound by hand, but most weavers prefer using a bobbin winder. This tool winds yarn evenly and quickly, creating a stable yarn package that unwinds smoothly. Try to wind the yarn evenly across the bobbin rather than building it up heavily in one spot — even winding prevents the yarn from catching or jerking during weaving. Once the bobbin is full, it can be placed into the shuttle.
Step Two: Threading the Shuttle
Place the bobbin inside the shuttle so the yarn unwinds from the correct direction. Typically, the yarn should unwind from the bottom of the bobbin toward the front of the shuttle. The yarn is then guided through the tension spring or eyelet before exiting the shuttle. This tension control prevents the yarn from spilling out too quickly when the shuttle moves across the loom. Once threaded, pull a short length of yarn out of the shuttle and you're ready to weave.
Step Three: Holding the Shuttle
Here's something I see a lot of beginners do: they grip the shuttle tightly, like they're trying to strangle it. A relaxed grip works much better. Hold the shuttle lightly in one hand, allowing the curved bottom to rest against your palm or fingers. The goal is to guide the shuttle smoothly across the warp rather than throwing it forcefully. Experienced weavers often develop a gentle motion where the shuttle glides rather than flies through the shed, which keeps the yarn tension consistent and reduces the chance of catching warp threads.
Step Four: Passing the Shuttle Through the Shed
Once the loom creates an open shed, the shuttle can pass through. Guide the shuttle across the warp threads, aiming for a smooth, level path through the center of the shed. Avoid letting the shuttle drag along the warp threads too heavily — the smoother the motion, the more evenly the weft yarn will feed into the cloth. As the shuttle reaches the other side of the loom, the opposite hand receives it, the loom changes sheds, and the shuttle travels back again. This back-and-forth motion becomes the fundamental rhythm of weaving.
Step Five: Controlling Weft Tension
A common beginner mistake is pulling the weft yarn too tightly. If the weft is pulled too snugly, the edges of the fabric — called the selvedges — can draw inward, causing the cloth to narrow. Instead, allow the yarn to rest slightly relaxed across the shed before beating it into place with the loom's reed. Some weavers form a gentle weft angle (sometimes called a weft bubble) before beating. This extra yarn ensures the fabric maintains its intended width. Over time, controlling weft tension becomes second nature.
Step Six: Develop Your Weaving Rhythm and Keep Going
Boat shuttles reward consistent, relaxed motion. Once the mechanics feel familiar, the real goal is building a steady rhythm: open shed, throw shuttle, beat weft, change shed, repeat. Compared to simpler weaving tools like stick shuttles, boat shuttles allow many weavers to work faster and more comfortably, especially on wider looms. For projects with long weaving sessions, that efficiency can make a noticeable difference. A well-made hardwood shuttle is a big part of that — my handmade boat shuttles are built to glide smoothly session after session.
Step Seven: Finding the Meditative Rhythm of Weaving
At first, weaving with a shuttle may feel slightly mechanical. But after a short time, the movements begin to flow together. The loom creates a steady rhythm, and the shuttle becomes part of that motion. Many weavers find this rhythm deeply relaxing — the repeated motion of shuttle, treadles, and reed creates a quiet focus that feels almost meditative. It's one of the reasons weaving has remained such a beloved craft for centuries.
Key Takeaways
- Boat shuttles carry weft yarn across the loom through the shed opening between warp threads
- The bobbin inside the shuttle rotates freely, allowing yarn to unwind with minimal resistance
- Wind bobbins evenly to prevent yarn from catching or jerking during weaving
- Thread the shuttle so yarn unwinds from the bottom of the bobbin toward the front
- Hold the shuttle lightly with a relaxed grip — guide it smoothly rather than throwing forcefully
- Control weft tension to prevent selvedges from drawing inward and narrowing the fabric
- Form a gentle weft angle (weft bubble) before beating to maintain fabric width
- Boat shuttles offer smooth, fast movement and work well on wider looms for efficient weaving
Frequently Asked Questions
What is a boat shuttle used for in weaving?
A boat shuttle carries weft yarn across the loom through the shed — the opening created between warp threads when the loom changes position. The bobbin inside rotates freely, allowing yarn to unwind with very little resistance as the shuttle glides across the warp. This makes the boat shuttle one of the most efficient tools in handweaving, particularly for wider looms and longer weaving sessions where the speed and smoothness of the shuttle make a noticeable difference in how quickly and comfortably you can work.
How do you wind a bobbin for a boat shuttle?
The best way to wind a bobbin is with a bobbin winder, which winds yarn evenly and quickly across the bobbin's length. The goal is to distribute the yarn evenly rather than building it up heavily in one spot — uneven winding creates an unbalanced yarn package that can wobble on the spindle and cause the yarn to feed inconsistently or jerk during weaving. Wind at a moderate tension: tight enough that the yarn sits firmly on the bobbin, but not so tight that it compresses the bobbin or makes the yarn difficult to unwind. A well-wound bobbin feeds smoothly from start to finish.
How do you thread a boat shuttle?
Place the bobbin inside the shuttle cavity so the yarn unwinds from the bottom of the bobbin toward the front of the shuttle — this is the direction that allows the tension spring or eyelet to control the yarn feed correctly. Thread the yarn through the tension spring or eyelet before pulling it out of the shuttle. This tensioning system is what prevents the yarn from spilling out freely when the shuttle is in motion. Once threaded, pull a short length of yarn out and you're ready to weave. If the yarn feeds too loosely or too tightly, adjust the tension spring if your shuttle has one.
Why do my selvedges draw in when weaving?
Selvedges draw inward when the weft yarn is pulled too tightly after the shuttle passes through the shed. When the yarn is snug against the outermost warp threads, beating it into place pulls those edge threads inward, gradually narrowing the fabric. The fix is to allow the weft yarn to rest slightly relaxed across the shed before beating — many weavers form a gentle weft angle or bubble by angling the yarn upward slightly before pressing it down with the reed. This gives the weft enough slack to accommodate the over-under path through the warp without drawing the edges in.
How do you hold a boat shuttle correctly?
Hold the shuttle lightly with a relaxed grip, allowing the curved bottom to rest naturally against your palm or fingers. The goal is to guide the shuttle smoothly through the shed rather than throwing it with force — a forceful throw can cause the shuttle to bounce, tip, or catch on warp threads. Experienced weavers develop a gentle, controlled motion where the shuttle glides through the shed at a consistent height. The opposite hand waits at the other side of the loom to receive the shuttle and send it back. Over time this exchange becomes fluid and almost automatic.
What are the advantages of a boat shuttle over other shuttle types?
The main advantage of a boat shuttle over simpler options like stick shuttles is speed and consistency. Because the bobbin rotates freely inside the shuttle, yarn feeds with minimal resistance and the shuttle can move across the loom quickly without the weaver needing to manage yarn tension manually. This makes boat shuttles significantly more efficient for wider looms and longer weaving sessions. The smooth curved body also glides across warp threads more cleanly than flat stick shuttles, reducing the chance of snagging. For weavers who spend extended time at the loom, the ergonomic and efficiency advantages add up quickly.
What size boat shuttle do I need for my loom?
Shuttle length should be matched to your loom's weaving width — the shuttle needs to fit comfortably through the shed without being so long that it's awkward to handle or so short that it tips and catches. A general rule is to choose a shuttle roughly the same length as your weaving width or slightly shorter. For narrow looms under 15 inches, a shorter shuttle works well. For wider looms of 24 inches and up, a longer shuttle allows you to throw it across in one smooth motion. When in doubt, err slightly longer — a shuttle that's a bit long is easier to manage than one that's too short and keeps tipping into the warp.
How do I know when to change the bobbin?
The most obvious sign is when the yarn runs out mid-throw — the shuttle suddenly feels lighter and the weft stops feeding. To avoid this, watch the bobbin as you weave and change it when the yarn is getting low rather than waiting for it to run out completely. Running out mid-row means you'll need to join a new length of yarn in the middle of the fabric, which is manageable but adds a step. Many weavers keep several pre-wound bobbins ready so they can swap quickly without interrupting their rhythm. A bobbin winder makes pre-winding fast enough that keeping a small supply ready is easy.
