You sit down to spin, press the treadle, and the flyer just… doesn't move. Or it moves, but sluggishly, slipping every few rotations. Nine times out of ten, the culprit is the drive band.
The drive band is the mechanical link that transfers motion from the drive wheel to the flyer assembly, allowing twist to enter the fiber. Without a properly functioning one, the wheel simply cannot spin yarn. The good news is that replacing a drive band is one of the easiest maintenance tasks on a spinning wheel — and it usually takes just a few minutes.
When Should a Drive Band Be Replaced?
Drive bands gradually wear because they constantly rub against the drive wheel and flyer whorl. A worn or damaged drive band usually shows clear symptoms.
| Symptom | Possible Cause |
|---|---|
| Drive band slipping | Band may be stretched or worn |
| Uneven flyer rotation | Insufficient grip on the wheel |
| Visible fraying or fuzzy appearance | Material wearing down |
| Band breakage | Material fatigue or age |
| Squeaking or slipping sounds | Worn or improperly tensioned band |
| Inconsistent tension during spinning | Band has stretched beyond adjustment range |
If the flyer stops spinning easily or struggles to maintain speed, the drive band is often the first component to inspect. Replacing a worn drive band can often resolve these issues immediately.
Understanding Different Drive Band Systems
Before replacing a drive band, it helps to know which type of spinning wheel you have. Most spinning wheels fall into one of three categories:
Single drive wheels — one drive band powers both flyer and bobbin
Double drive wheels — two loops of the same band control flyer and bobbin tension
Scotch tension wheels — the drive band powers the flyer while a separate brake band controls bobbin tension
Each system uses a drive band slightly differently, but the replacement process is similar for all three.
Choosing the Right Drive Band Material
Drive bands can be made from several different materials, and choosing the right one affects how smoothly your wheel spins. Common options include cotton, linen, hemp, polyurethane, and specialty spinning wheel drive band material. The ideal material should be strong, flexible, and able to grip the wheel without slipping. Many modern spinners prefer purpose-made drive band material designed specifically for spinning wheels. I carry spinning wheel drive band material — available by the foot in multiple sizes.
Tools and Materials Needed
Replacing a drive band usually requires very few tools: replacement drive band or length of drive band material, scissors or flush cutters if cutting material, and optionally a measuring string. Many spinners keep extra drive band material available so replacements can be made quickly whenever needed.

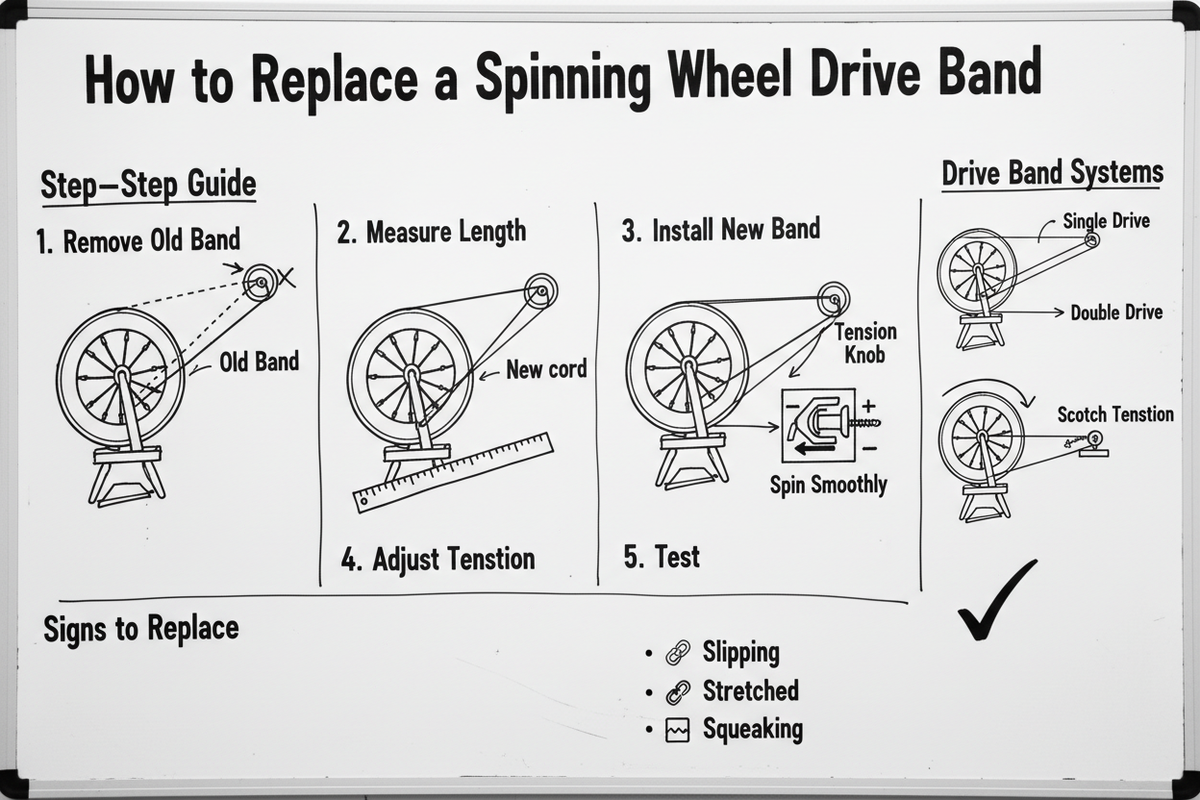

Step 1: Remove the Old Drive Band
Start by removing the existing drive band from the spinning wheel.
- Stop the wheel completely
- Lift the drive band off the flyer whorl
- Remove the band from the drive wheel
- If the band is tied with a knot, untie or cut it
Some older drive bands may break during removal if they are very worn. This is normal and simply confirms that replacement was needed. Once removed, you can use the old band as a reference for measuring a replacement.
Step 2: Measure the Correct Length
The new drive band must be the correct length to maintain proper tension. If replacing an existing band, measuring the old band usually provides a good starting point — if the old band has stretched significantly, shorten the replacement slightly. Some spinners wrap the new drive band material around the drive wheel and flyer path before cutting to confirm the correct length. The goal is a band that sits securely on the wheel but still allows small tension adjustments.
Step 3: Install a Pre-Made Drive Band
If you are using a pre-made drive band, installation is usually straightforward.
- Place the band around the drive wheel
- Loop the band around the flyer whorl
- Adjust the tension using the wheel's tension system
The band should be tight enough to grip the wheel without excessive tension. I carry wheel-specific pre-made bands for Ashford drive bands, Majacraft drive bands, Kromski drive bands, Louet drive bands, and Lendrum drive bands.
Step 4: Install a DIY Drive Band
If you are making a drive band using drive band material purchased by the foot, follow these steps.
- Wrap the drive band material around the drive path
- Determine the proper length
- For cotton or hemp, cut with a small amount of extra length for the knot. For polyurethane, cut to the measured length only — no knot is needed.
- Join the ends — for cotton or hemp, tie a small secure knot; for polyurethane, fuse the ends with a lighter for a seamless loop
- Place the loop around the drive wheel and flyer whorl
For knotted bands, the knot should be small enough to pass smoothly around the wheel and positioned where it will not interfere with the wheel's movement. Once installed, gently rotate the wheel by hand to confirm the band sits properly in the grooves.
Step 5: Adjust Drive Band Tension
After installation, the drive band tension may need adjustment. Proper tension is important for efficient spinning.
| Tension Level | Result |
|---|---|
| Too loose | Drive band may slip on the whorl |
| Correct tension | Smooth, consistent spinning |
| Too tight | Extra wear on wheel components and unnecessary friction |
Most spinning wheels include a tension adjustment system that allows the spinner to fine-tune the drive band. Turn the wheel slowly and watch how the flyer responds. When properly adjusted, the flyer should spin smoothly with minimal slipping. Adjust tension gradually until the wheel spins smoothly.
Step 6: Test the New Drive Band
After installation, test the spinning wheel with a short spinning session.
- Treadle slowly to check movement
- Watch for slipping or jumping
- Observe how the flyer behaves — it should begin spinning immediately when the wheel turns
- Adjust tension if necessary
A properly installed drive band should allow the wheel to spin smoothly and consistently. If slipping occurs, adjust the tension slightly until the motion feels consistent.
A Small Part with a Big Role
The drive band may seem like a simple piece of material, but it is one of the most important components of the spinning wheel's mechanism. By transferring motion from the drive wheel to the flyer, it allows twist to enter the yarn and keeps the spinning process flowing smoothly. Replacing a worn drive band is one of the easiest ways to maintain a spinning wheel and ensure it continues working reliably — and once the new band is in place, the wheel is ready to do what it has always done: transform loose fiber into yarn, one treadle at a time.
Key Takeaways
- Drive bands transfer motion from the drive wheel to the flyer assembly, allowing twist to enter yarn
- Replace drive bands when they slip, appear frayed, stretch beyond adjustment range, or cause inconsistent tension
- Single drive, double drive, and Scotch tension wheels use drive bands differently but replace similarly
- Choose strong, flexible materials like cotton, linen, hemp, polyurethane, or purpose-made drive band material
- Both pre-made and DIY drive bands can be installed easily with basic tools in just a few minutes
- Proper tension is essential — too loose causes slipping, too tight causes excess wear on components
- Test the wheel after installation and adjust tension until the flyer spins smoothly without slipping
- Keeping spare drive band material on hand means a broken band can be replaced mid-session without losing much spinning time
Frequently Asked Questions
How often should a spinning wheel drive band be replaced?
The lifespan depends on the material and how frequently you spin. Drive bands should be replaced when they stretch beyond the wheel's adjustment range, slip consistently during spinning, show visible fraying or wear, or cause inconsistent tension that can't be corrected. Polyurethane bands tend to last longer than cotton or hemp because they don't absorb moisture or fray. Spinners who use their wheels heavily may replace bands annually, while occasional spinners may go several years between replacements. Keeping a spare length of drive band material on hand means you're never caught without a replacement.
Can I make my own drive band?
Yes, and many spinners prefer to. Making your own band from drive band material purchased by the foot lets you cut it to the exact length your wheel needs, which gives you more precise control over tension than a standard-sized pre-made band. For cotton or hemp, cut with a small amount of extra length and tie into a secure loop with a compact knot. For polyurethane, cut to the measured length and fuse the ends with a lighter for a completely seamless loop. The process takes about ten minutes once you've done it a couple of times.
Why does my drive band keep slipping?
Slipping is usually caused by one of three things: the band is worn or stretched and no longer grips the whorl properly, the tension is set too loose, or the band diameter doesn't match the whorl groove well. Start by checking the tension adjustment — tighten it slightly and see if the slipping stops. If the band looks frayed, glazed, or stretched, replace it entirely. If you're using a cord that wasn't designed for spinning wheels, switching to purpose-made drive band material often resolves persistent slipping issues.
Is replacing a drive band difficult?
Not at all. It's one of the easiest spinning wheel maintenance tasks and requires no special tools beyond scissors or flush cutters. Most replacements take just a few minutes once you know the process. The steps are the same regardless of wheel brand: remove the old band, measure and cut the new one, join the ends, install it, and adjust tension. After doing it once or twice, it becomes second nature — the kind of quick fix you can do mid-session without losing much spinning time.
What is the best material for a spinning wheel drive band?
Purpose-made drive band material designed specifically for spinning wheels is generally the best choice because it's engineered to maintain consistent tension, resist stretching, and run quietly over the whorl. Polyurethane is particularly popular because it lasts a long time and doesn't require a knot — the ends fuse together for a seamless loop. Cotton and hemp are good natural fiber alternatives that work well and are easy to knot. Linen is also used by some spinners. The best material ultimately depends on your wheel's whorl groove size and your personal preference for feel and sound.
What is the difference between single drive and double drive spinning wheels?
Single drive wheels use one drive band to power both the flyer and the bobbin together, with tension controlled by a single adjustment. Double drive wheels use two loops of the same band — one groove drives the flyer whorl and another drives the bobbin whorl — allowing the spinner to control the ratio between flyer and bobbin speed more precisely. Scotch tension wheels take a different approach: the drive band powers the flyer while a separate, lighter brake band applies drag to the bobbin. Each system has its advantages, and the replacement process for the drive band itself is similar across all three.
How do I know if my drive band tension is correct?
Correct tension is one of those things that's easier to feel than to describe, but there are reliable signs. When the tension is right, the flyer begins spinning immediately when you treadle and maintains consistent speed without slipping or jerking. If you have to treadle hard to keep the flyer moving, the band may be too loose. If the wheel feels stiff or the band is visibly bowing under strain, it's too tight. Start with the lightest tension that still drives the flyer reliably, then adjust from there based on the fiber and yarn weight you're spinning.
Can I use the same drive band material for all spinning wheel brands?
In most cases, yes — drive band material is not brand-specific, and the same cord can work across different wheel makes and models as long as the diameter is appropriate for the whorl grooves on your wheel. The key variables are diameter and material, not brand compatibility. Pre-made bands, however, are sized for specific wheel models and are not interchangeable between brands. If you're making your own band from material, measure your wheel's drive path and choose a cord diameter that seats cleanly in the whorl groove without riding up the sides.
