Even though a drive band is simply a loop of material, it performs a critical mechanical job. It transfers the motion of the wheel to the flyer, allowing twist to enter the yarn and the bobbin to wind it on.
Because it is constantly moving, stretching, and rubbing against wheel components, the drive band naturally experiences wear over time. The good news is that most issues are easy to diagnose and quick to fix.

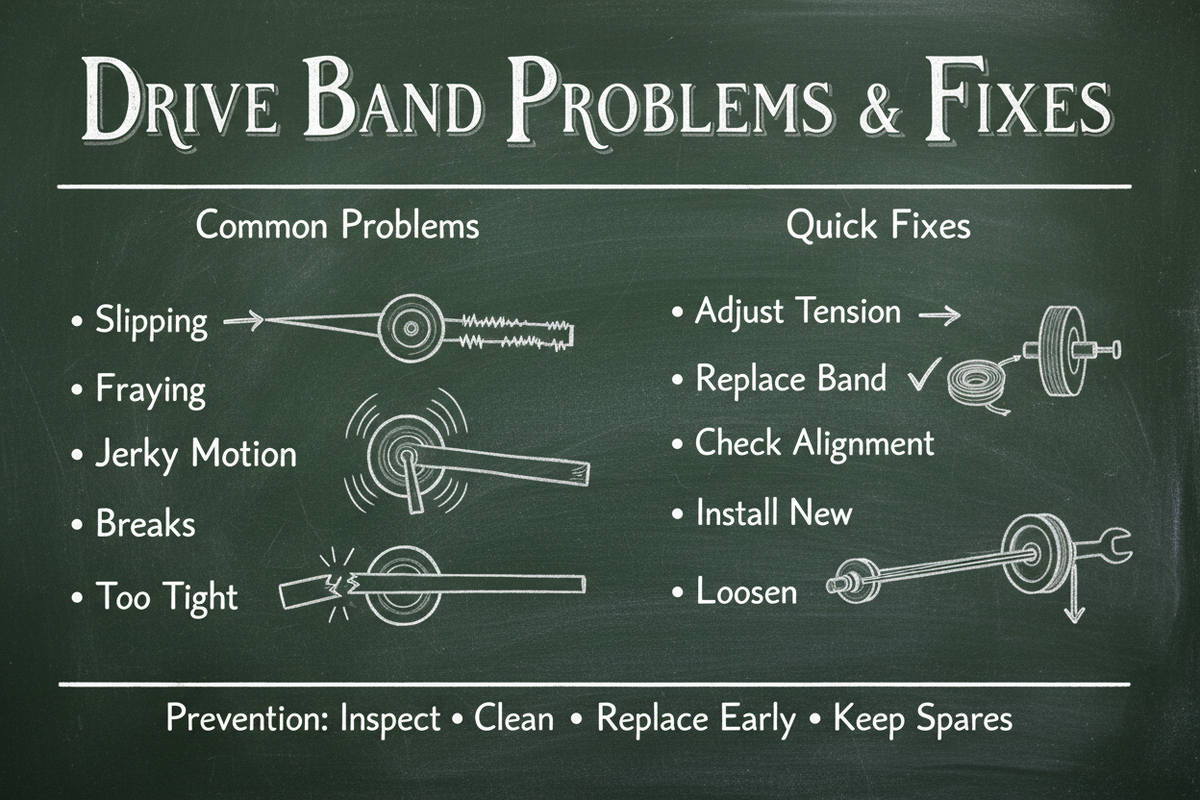

Quick Troubleshooting Guide
| Problem | Likely Cause | Quick Fix |
|---|---|---|
| Drive band slips | Tension too loose or band worn smooth | Increase tension; replace if worn |
| Band is fraying | Normal wear from friction | Replace when significantly frayed |
| Jerky flyer motion | Band not seated properly or knot catching | Check groove alignment; reposition knot |
| Band breaks | End of lifespan from wear | Install new drive band |
| Band too tight | Excessive tension adjustment | Loosen tension slightly |
Problem: The Drive Band Slips While Spinning
A slipping drive band is probably the most common complaint spinners have. The wheel turns fine, but the flyer rotates slowly or inconsistently — and twist enters the yarn unevenly, or the flyer stalls the moment you start drafting.
The culprit is almost always tension. The drive band isn't gripping the flyer whorl firmly enough.
How to Fix It
The fix depends on your wheel's drive system:
- Single drive (Scotch tension): Tension is controlled by the brake band on the bobbin, not the drive band itself. If the drive band is slipping, check that it is seated correctly in the whorl groove and that the whorl size matches your intended spinning speed. Increase the drive band tension slightly using the mother-of-all adjustment, but avoid over-tightening — Scotch tension wheels are sensitive to excessive drive band tension.
- Single drive (Irish tension / bobbin-lead): The drive band drives the bobbin directly. Slipping here usually means the band needs tightening via the tension adjustment knob or the mother-of-all. Increase tension gradually until the bobbin turns consistently.
- Double drive: The drive band runs in a figure-eight around both the flyer whorl and the bobbin whorl. Slipping on a double drive wheel often means the band has stretched and needs replacing, or the ratio between whorl sizes needs rechecking. Adjust tension at the mother-of-all, but note that double drive wheels require very precise tension — too much causes drag, too little causes slipping.
If slipping continues even with proper tension for your drive system, the drive band may have worn smooth and needs replacement.
Problem: The Drive Band Is Fraying
Over time, the drive band may start to look fuzzy or frayed — especially if it's made from a natural fiber material like cotton or linen. Fraying tend to show up first where the band contacts the drive wheel groove or flyer whorl.
| Fraying Level | Action Needed |
|---|---|
| Minor fuzzing | Monitor but continue using |
| Visible fiber separation | Plan replacement soon |
| Significant breaking apart | Replace immediately |
How to Fix It
A little fuzz is normal and won't affect performance right away. But once the fibers start breaking apart significantly, the band is weakening and more likely to snap mid-session. At that point, replacement is the right call.
Keeping a small supply of spinning wheel drive band material nearby makes this an easy repair.
Problem: The Flyer Feels Jerky While Spinning
If your wheel feels uneven or jerky when treadling — the flyer speeding up and slowing down unpredictably — the drive band is usually the place to look. It either isn't sitting evenly in the wheel groove, or the knot is catching as it rotates through the system.
How to Fix It
Check that the drive band is seated correctly in the drive wheel groove and around the flyer whorl. Then rotate the wheel slowly by hand and watch how the knot passes through. If it catches or bumps against anything, reposition it or retie the band with a smaller knot. A smooth path makes all the difference.
Problem: The Drive Band Breaks
Eventually, every drive band reaches the end of its life. Years of tension, friction, and repeated spinning weaken the material until it snaps — and when it does, the flyer stops immediately even though the wheel keeps turning.
How to Fix It
This is actually one of the simplest repairs in spinning. Remove the broken band, measure the correct length, and install a new one using fresh drive band material. Many spinners keep spare drive band material in their supplies for exactly this reason. Once replaced, you're back to spinning.
Problem: The Drive Band Is Too Tight
Loose drive bands get most of the attention, but an overly tight band can cause its own problems. Too much tension increases friction throughout the wheel's moving parts, making treadling feel heavy and putting unnecessary stress on bearings or bushings.
| Symptom | Indicates |
|---|---|
| Heavy treadling | Excessive friction from tight band |
| Wheel feels resistant | Too much tension on components |
| Flyer spins but feels stiff | Band gripping too firmly |
How to Fix It
Back off the tension adjustment slightly until the drive band sits firmly but comfortably. The flyer should spin easily and the wheel should turn without resistance. You're looking for that sweet spot where the band grips without fighting the wheel.
Note for double drive wheels: Over-tightening is especially problematic because the band controls both the flyer and bobbin simultaneously. Even slight over-tension can cause drag on the bobbin, making it difficult to draft and wind on evenly.
Preventing Drive Band Issues
Most drive band problems are avoidable with a little routine attention. A few habits that help:
- Inspect the drive band occasionally for signs of wear or stretching
- Keep the wheel clean so dust and fiber debris don't accumulate in the drive wheel groove
- Replace drive bands before they become severely worn
- Adjust tension properly — not too loose, not too tight
- Keep spare drive band material on hand for quick repairs
None of this takes much time, but it goes a long way toward keeping your wheel running smoothly.
A Simple Component with an Important Role
It's easy to overlooked the drive band because it is such a small part of the spinning wheel. But without it, the wheel cannot transfer motion to the flyer, and spinning simply stops. Fortunately, the simplicity of the drive band is also its greatest advantage — when problems arise, the solution is usually quick and straightforward. A fresh length of drive band material, properly fitted and tensioned, brings the wheel back to life and restores the familiar rhythm of treadle, twist, and yarn forming steadily from fiber.
Key Takeaways
- Slipping drive bands require different fixes depending on drive system — Scotch tension, Irish tension, or double drive each behave differently
- Fraying is normal but requires replacement when fibers break apart significantly
- Jerky flyer motion indicates improper band seating or knot catching on components
- Broken drive bands are simple to replace with fresh drive band material
- Over-tight bands cause heavy treadling and excessive wear on wheel components
- Double drive wheels are especially sensitive to over-tightening
- Regular inspection and cleaning prevent most drive band problems
- Keeping spare drive band material enables quick repairs without waiting for replacements
- Proper tension balances grip and smooth operation for efficient spinning
Frequently Asked Questions
Why does my drive band keep slipping?
The fix depends on your wheel type. On Scotch tension wheels, the drive band tension should be relatively light — it's the brake band on the bobbin that controls uptake, not the drive band itself. Check that the band is seated correctly in the whorl groove and avoid over-tightening. On Irish tension (bobbin-lead) wheels, increase drive band tension gradually until the bobbin turns consistently. On double drive wheels, slipping often means the band has stretched and needs replacing, or the whorl ratio needs checking. If slipping continues after proper adjustment for your drive system, the band has likely worn smooth and needs to be replaced entirely.
When should I replace a frayed drive band?
A little surface fuzz on a cotton or hemp band is completely normal and doesn't mean you need to stop spinning. The time to replace it is when the fibers start breaking apart visibly — when you can see the band thinning in spots or the surface looks significantly worn through. At that stage, the band is weakening and more likely to snap without warning mid-session. Replacing it before it breaks is much less disruptive than having it snap while you're in the middle of spinning.
What causes jerky flyer motion?
Jerky or uneven flyer motion is almost always caused by the drive band not sitting evenly in the wheel groove, or by a knot that's catching on something as it rotates through the system. Start by checking that the band is properly seated in the drive wheel groove and around the flyer whorl — it should sit flat and centered, not riding up the sides. Then rotate the wheel slowly by hand and watch the knot as it passes through. If it bumps or catches against any part of the wheel, reposition it or retie the band with a smaller, more compact knot. A smooth, unobstructed path for the knot usually resolves the issue completely.
How do I know if my drive band is too tight?
Heavy treadling, a wheel that feels resistant to turn, or a flyer that spins stiffly are all signs that the drive band tension is too high. Back off the tension adjustment slightly until things move freely. On double drive wheels, be especially careful — even slight over-tension can cause drag on the bobbin, making it difficult to draft smoothly and wind on evenly.
How can I prevent drive band problems?
Most drive band problems are avoidable with a little routine attention. Inspect the band occasionally for signs of wear or stretching. Keep the wheel clean so fiber debris doesn't accumulate in the drive wheel groove. Replace bands before they become severely worn rather than waiting for them to snap. Adjust tension properly — not too loose, not too tight — and keep a spare length of spinning wheel drive band material on hand so you can make quick repairs without interrupting a spinning session.
